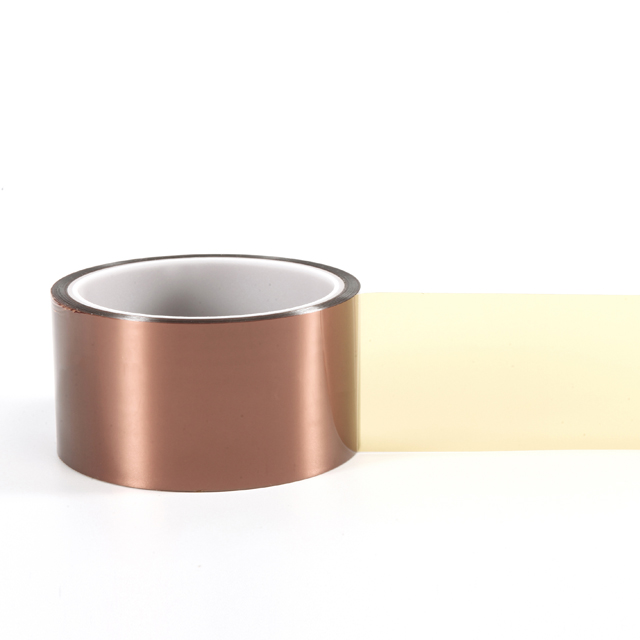

Anti-static polyimide tape

product description:
This tape is made of a special antistatic polyimide film as the substrate and coated with a special silicone pressure sensitive adhesive on one side. Its special anti-static treatment process can effectively reduce the static electricity generated in the various steps of tape manufacturing and unwinding, which can prevent the electrostatic hazards well.


Product Features:
■ Has excellent H-class electrical insulation performance;
■ Good viscosity, high temperature resistance, solvent resistance and no residue after peeling;
■ Effectively prevent the generation of static electricity during production and unwinding.

Quantity:
  • See the list below
  • 见下列表

product structure:

This tape is made of a special antistatic polyimide film as the substrate and coated with a special silicone pressure sensitive adhesive on one side.

Its special anti-static treatment process can effectively reduce the static electricity generated in the various processes of tape manufacturing and unwinding, which can prevent static electricity well.

harm.


Product Features:

■ Has excellent H-class electrical insulation performance;

■ Good viscosity, high temperature resistance, solvent resistance and no residue after peeling;

■ Effectively prevent the generation of static electricity during production and unwinding.


Applications:

►Used for external packaging of circuit boards, notebook computers, mobile phone communications, etc. that require antistatic products, and related fields that require electrostatic protection;

►Electrical industry such as high-temperature insulation bundling of transformer coils, insulation repair of motor cables, etc .;

►PCB welding and SMT production are prone to static electricity;


Slicing matters:

1. The whole width is 500mm, which can be cut into 2 ~ 500mm;

2. The length is 33 meters, 50 meters and 66 meters, and the other length can be customized according to customer requirements;

3, PE plastic core, inner diameter 76mm (3 \") and 38mm (1.5 \").


Product parameters:

Part No Product name Total thickness Glue system colour TDS data download
SG-2550KE-S-A Antistatic polyimide tape 0.05mm Silicone adhesive Brown

pdfbg

SG-2560KE-S-A Antistatic polyimide tape 0.06mm Silicone adhesive Brown

pdfbg

SG-5080KE-S-A Antistatic polyimide tape 0.08mm Silicone adhesive Brown

pdfbg

SG-75120KE-S-A Antistatic polyimide tape 0.12mm Silicone adhesive Brown

pdfbg

SG-100150KE-S-A Antistatic polyimide tape 0.15mm Silicone adhesive Brown

pdfbg

SG-125180KE-S-A Antistatic polyimide tape 0.18mm Silicone adhesive Brown

pdfbg
